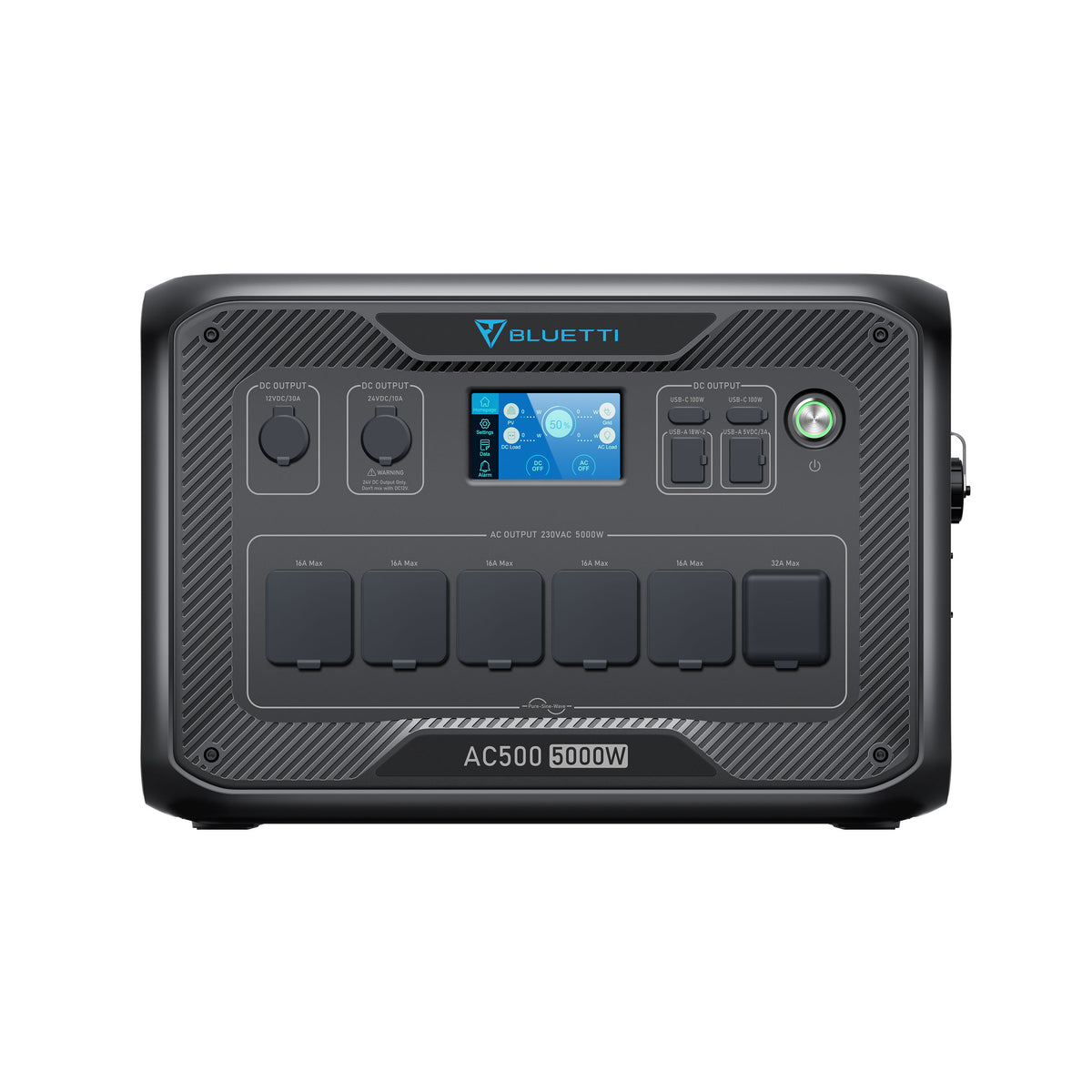

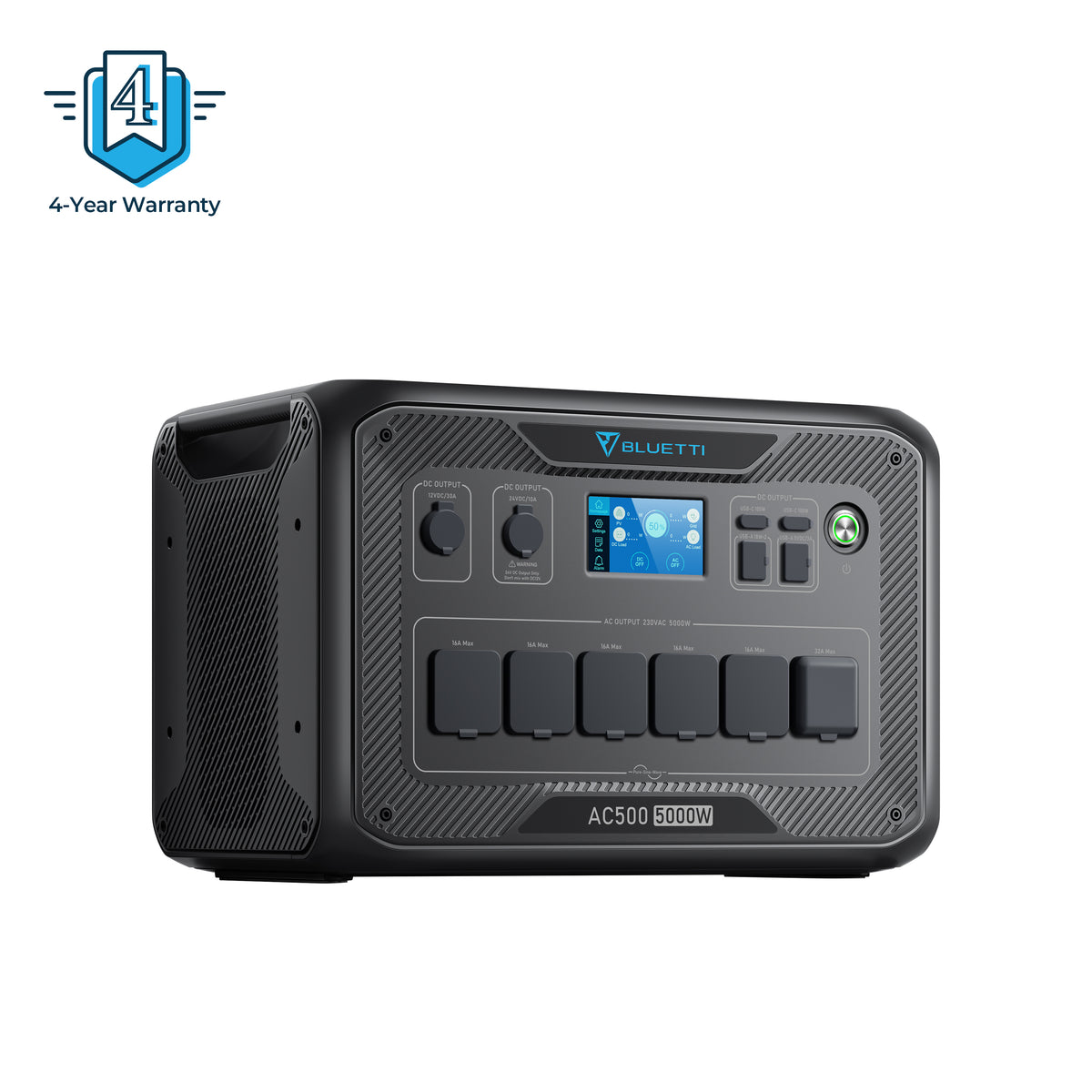

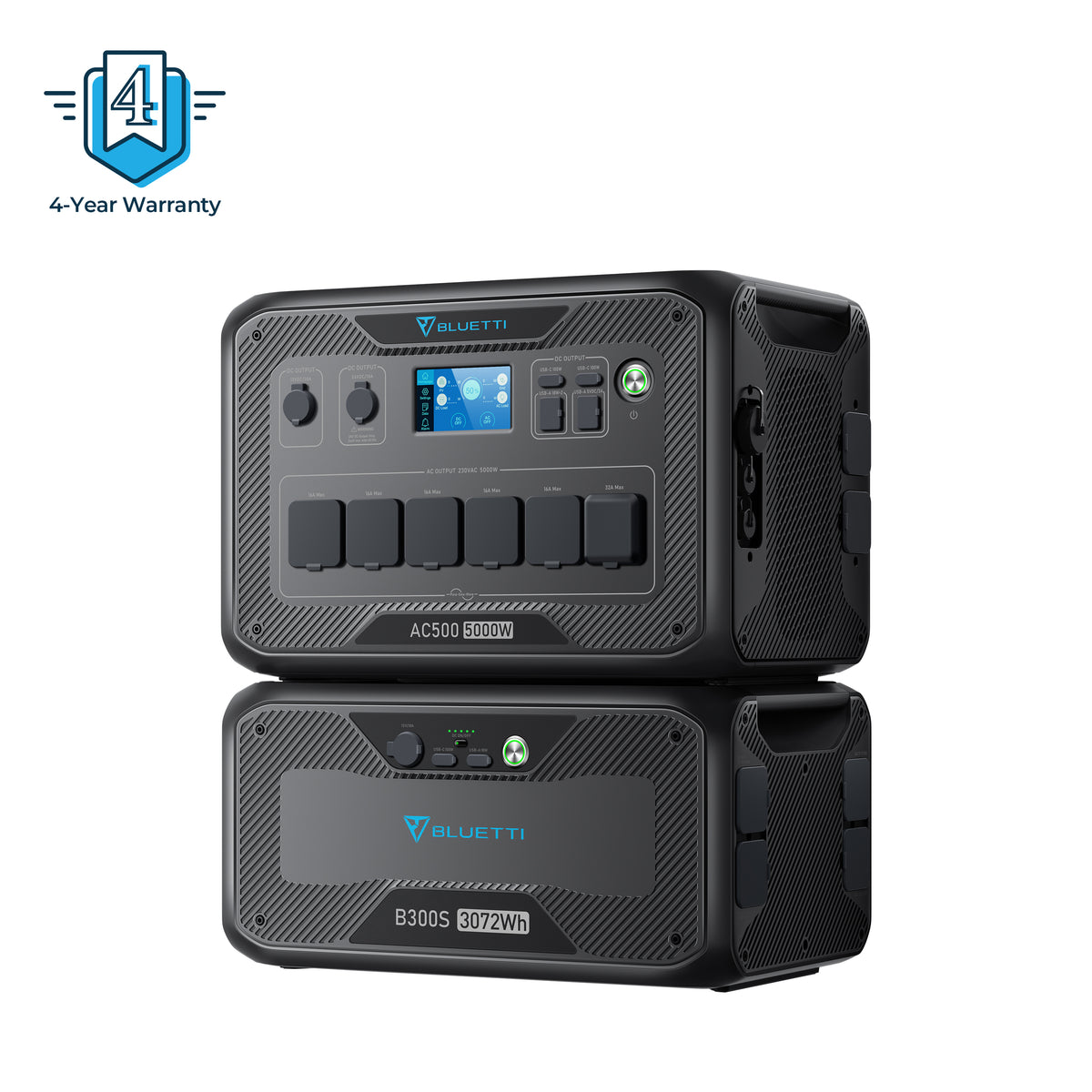

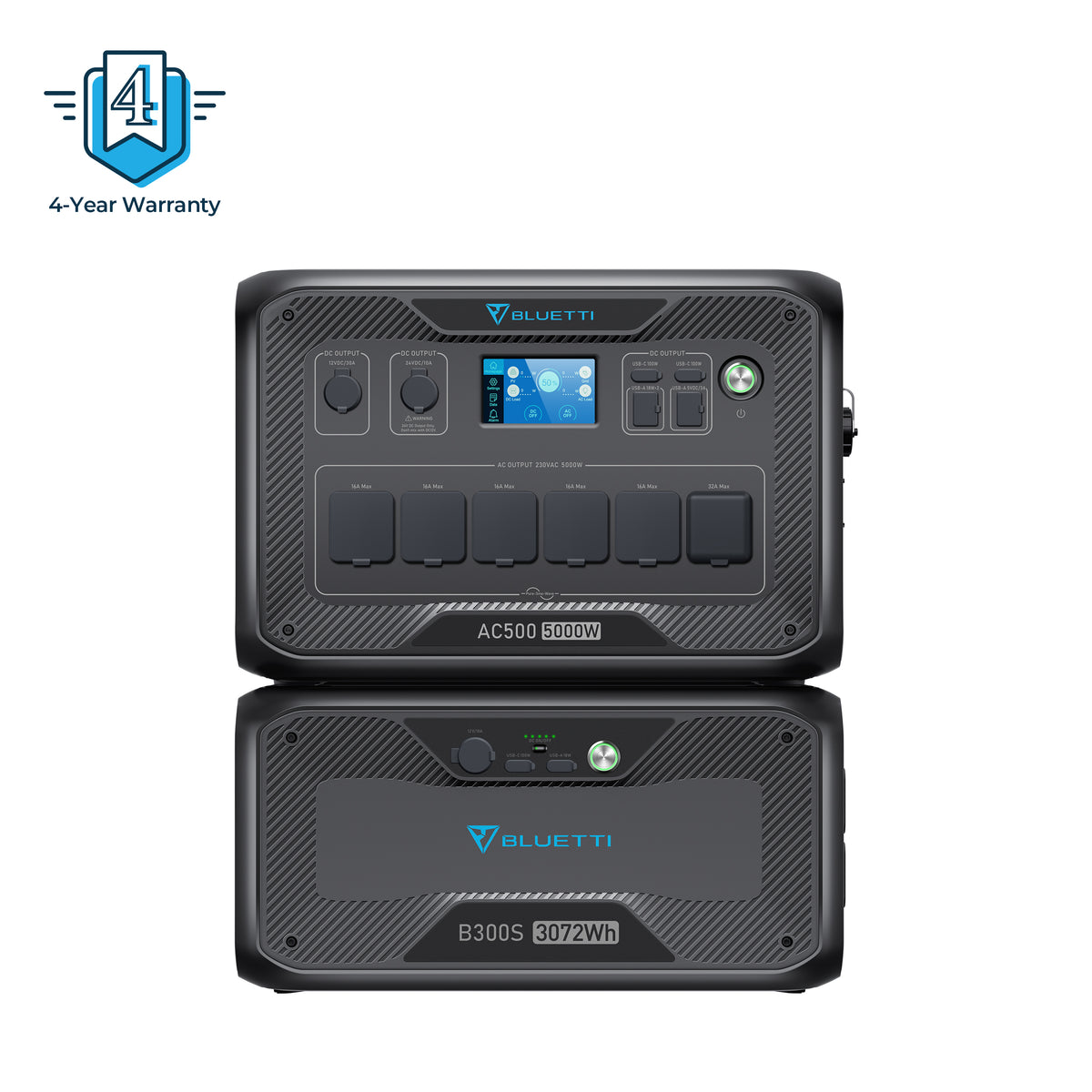

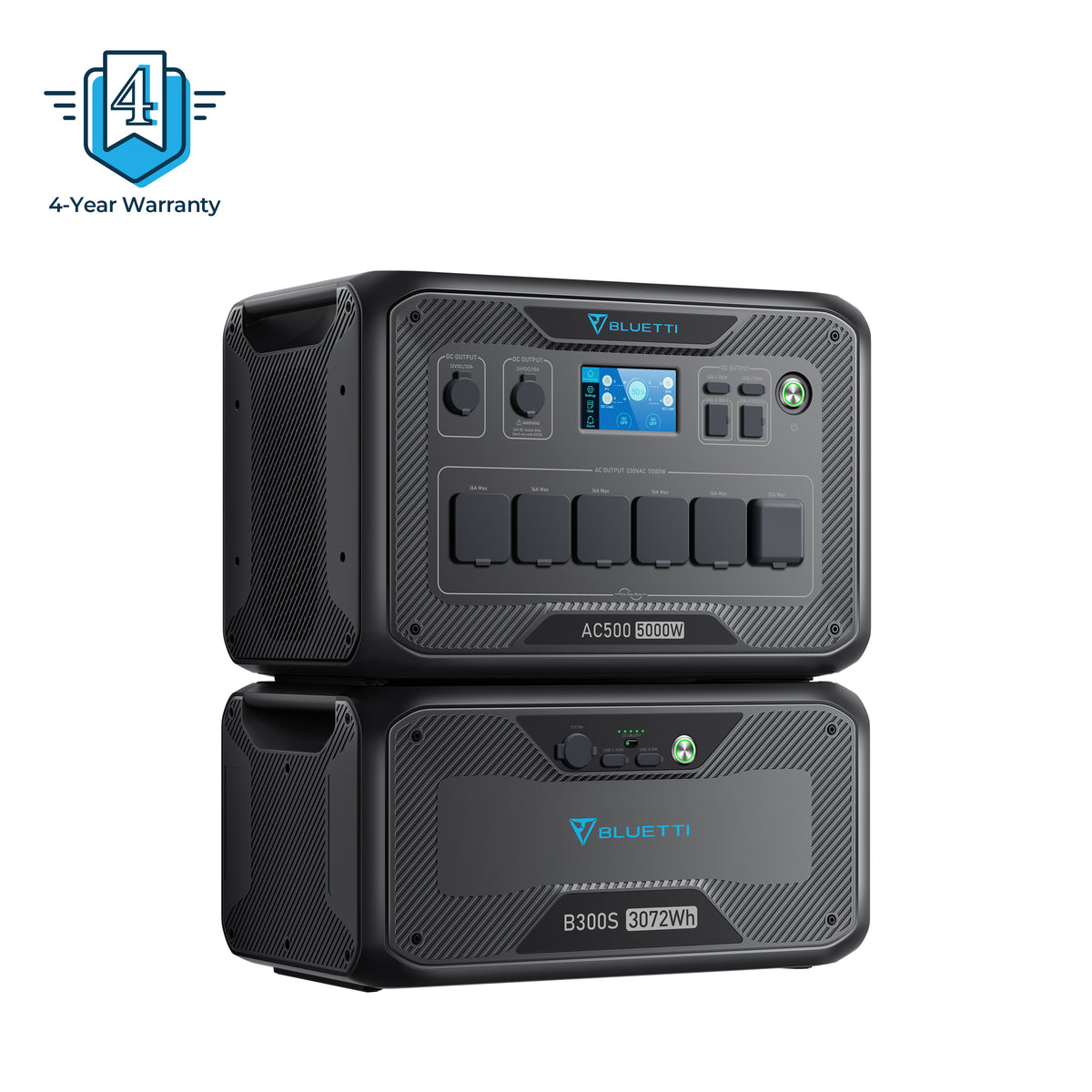

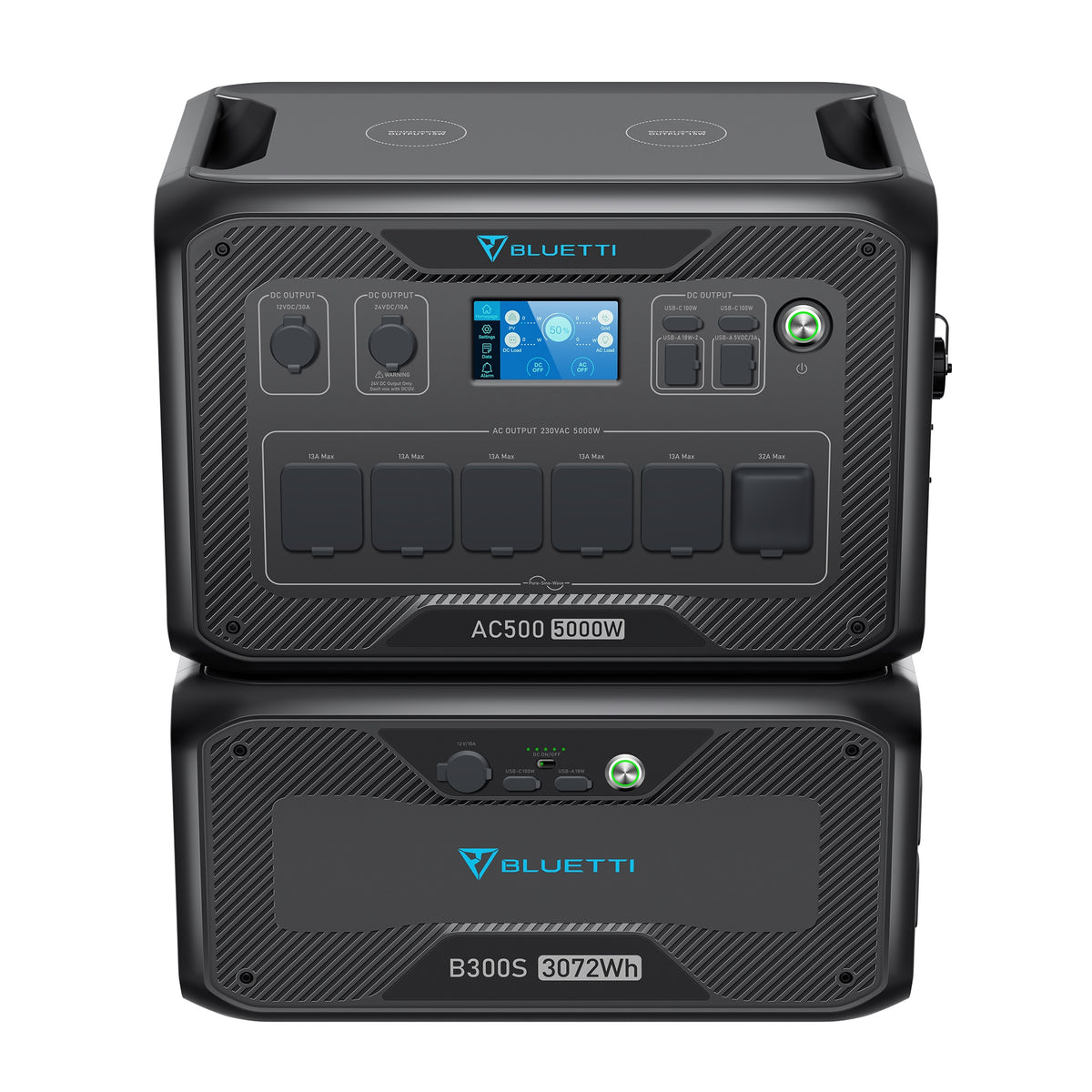

BLUETTI AC500+B300S Home Power Bank | 5,000 Wh 3,072 Wh

FAQS

• Q1: What is the output power of AC500?

  A:
  1. 4,500W max with 1*B300S*1
  2. 5000W max with 2*B300S or more
  3. 3,000W max with 1*B300*1
  4. 5,000W max with 2*B300 or more.

• Q2: How many B300 packages can be connected to AC500？

  A: 4*B300

• Q3: How many B300S packages can be connected to AC500？

  A: 6*B300S

• Q4: Can B300S and B300 be mixed?

  A: Yes. 4 packs total.

• Q5: Can I use AC500 alone?

  A: No, it is 100% modular and needs to cooperate with B300S/B300 to accomplish its mission.

• Q6: What is the maximum charging power of the AC500 charger?

  A:
  1. 3,000W max with 1*B300*1
  2. 5,000W max with 2*B300 or more
  3. 4,500W Max with 1*B300S (PV+AC)
  4. 8,000W max with 2*B300S or more (PV+AC)

• Q7: Can I use other brands of batteries?

  A: No, the AC500 is compatible with the B300S or B300 only.

• Question 8: What is the power consumption of the AC500 when it is off/on?

  A:
  1. 11W when AC500 is on, DC and AC are off;
  2. 30 watts AC and DC operation.

• Q9: Do I need an additional cable to connect the B300 and AC500?

  A: Yes, P150D to P090D is required, you can order them separately in BLUETTI store.

• Q10: What is the difference between B300S and B300?

  A:
  1) Current capacity: 130A for B300S while 75A for B300.
  2) Only B300S has auto heating function.
  3) Solar power input: 500W for B300S while 200W for B300.

• Question 11: How does the heating function work?

  A: When the temperature is below 0℃, the battery will be heated automatically once AC or PV charging is activated (input power ＞400W).

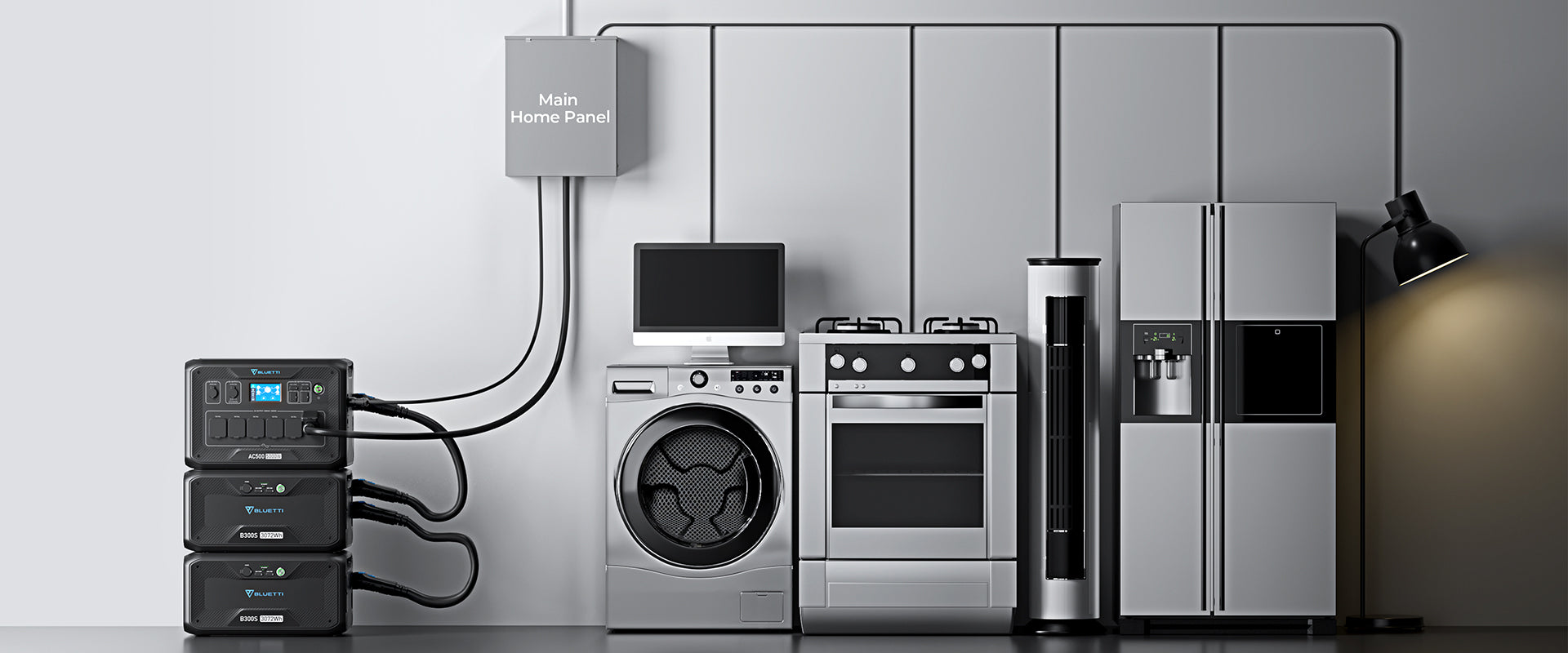

• Q12: How to connect AC500 to the mainboard?

  A:
  Low voltage area: Match the switch and smart home panel to the main panel.
  High voltage area: Match the transfer switch with the main power box.

• Q13: What is the UPS replacement time?

  A: 20ms.

• Q14: Can I use external solar panels to charge the AC500?

  A: Yes, solar panels must meet the following requirements:
  1) Total voltage: 12-150V
  2) Total power: 3000W max.
  3) With MC4 connectors

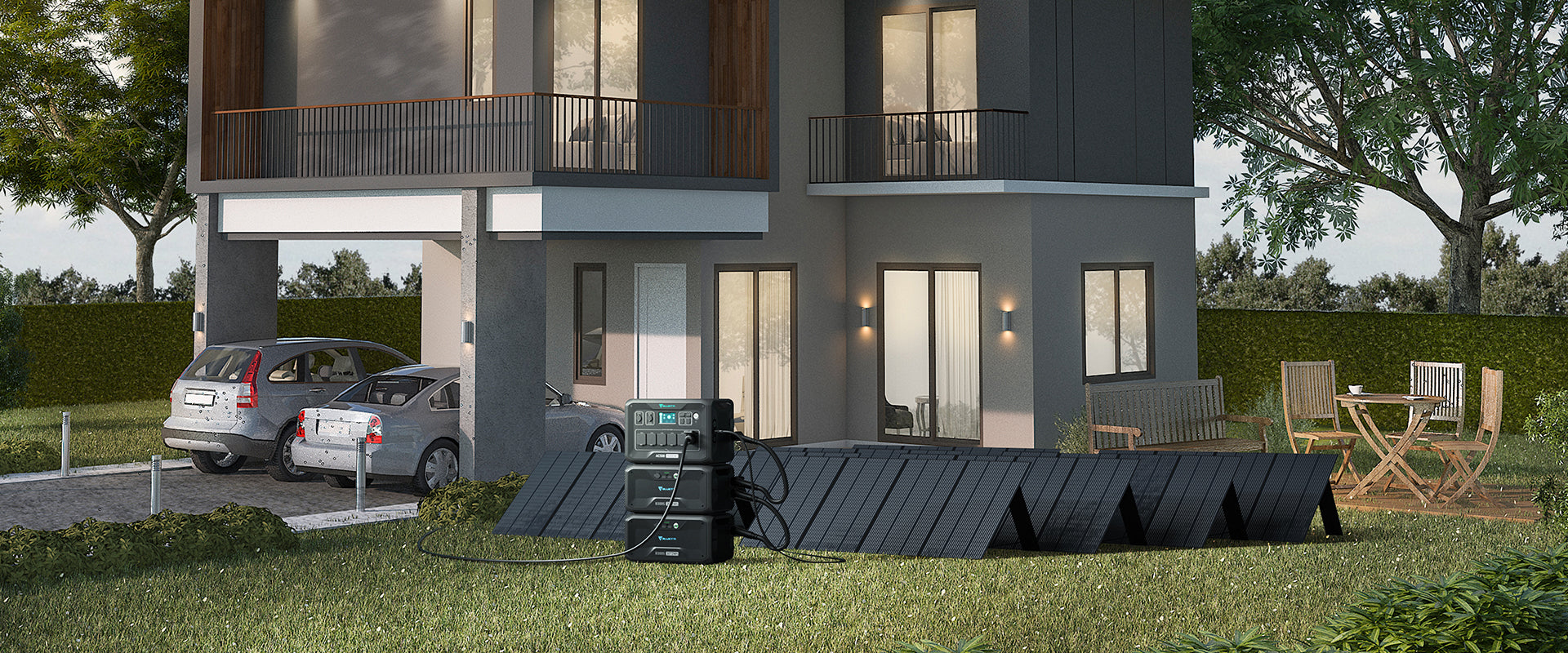

• Q15: Can I use the solar panels on the roof to charge the AC500?

  A: Yes, but please note that your solar roof must meet the following:
  1. No accurate reflector
  2. Open circuit voltage 12-150V
  3. With MC4 connectors
  Note: When the operating voltage exceeds 150V, you can use BLUETTI D300S* to lower the voltage to achieve solar charging.

• Question 16: Does AC500 support charging and discharging at the same time?

  A: Yes.

• Question 17: How long will my AC500 run?

  A: Operating time = Battery capacity × Depth of discharge × η ÷ Rated power of the device Depth of discharge: Depth of discharge, η: Efficiency of local inverter. For AC500, both DoD and η are equal to 90%.
  note:
  1) This equation does not apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
  2) The above data is for reference only.

• Q18: Is the AC500 waterproof?

  A: No, please keep it in a dry place.

• Q19: Can I use the fuse box in high voltage areas?

  A: There is no
