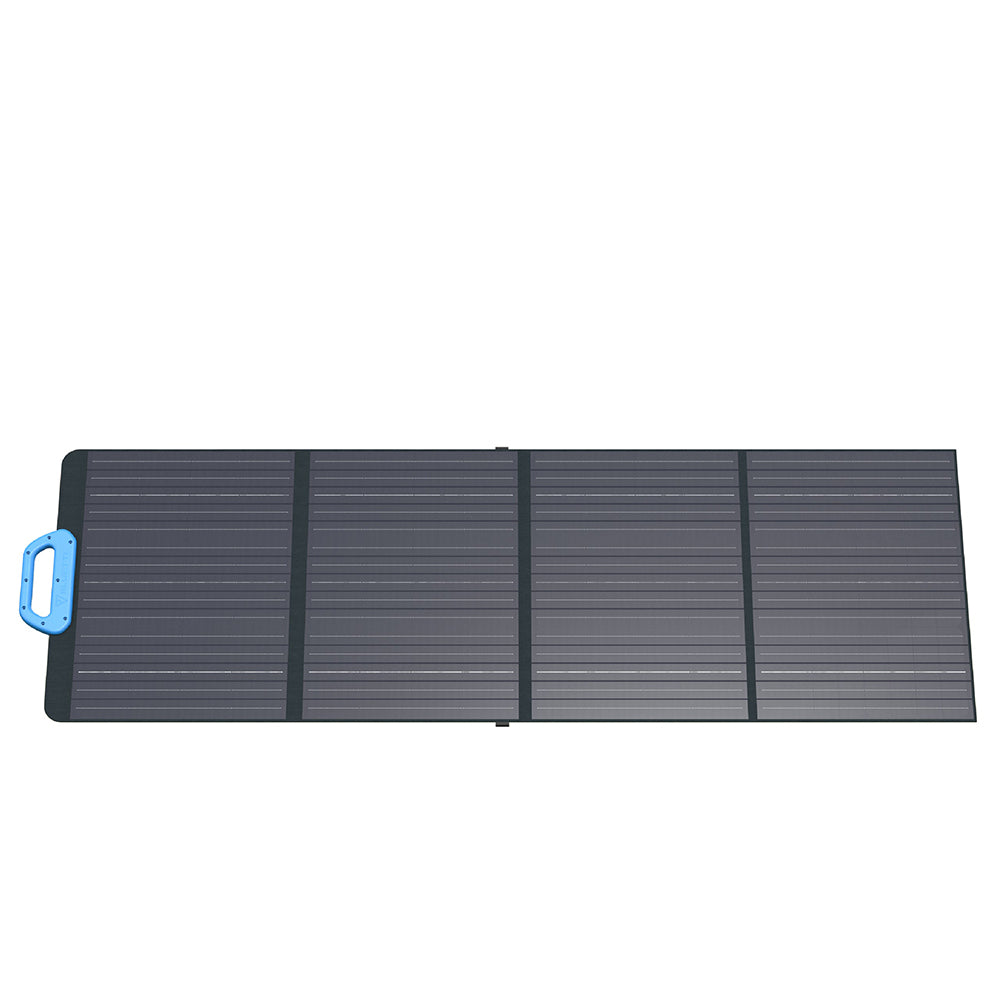

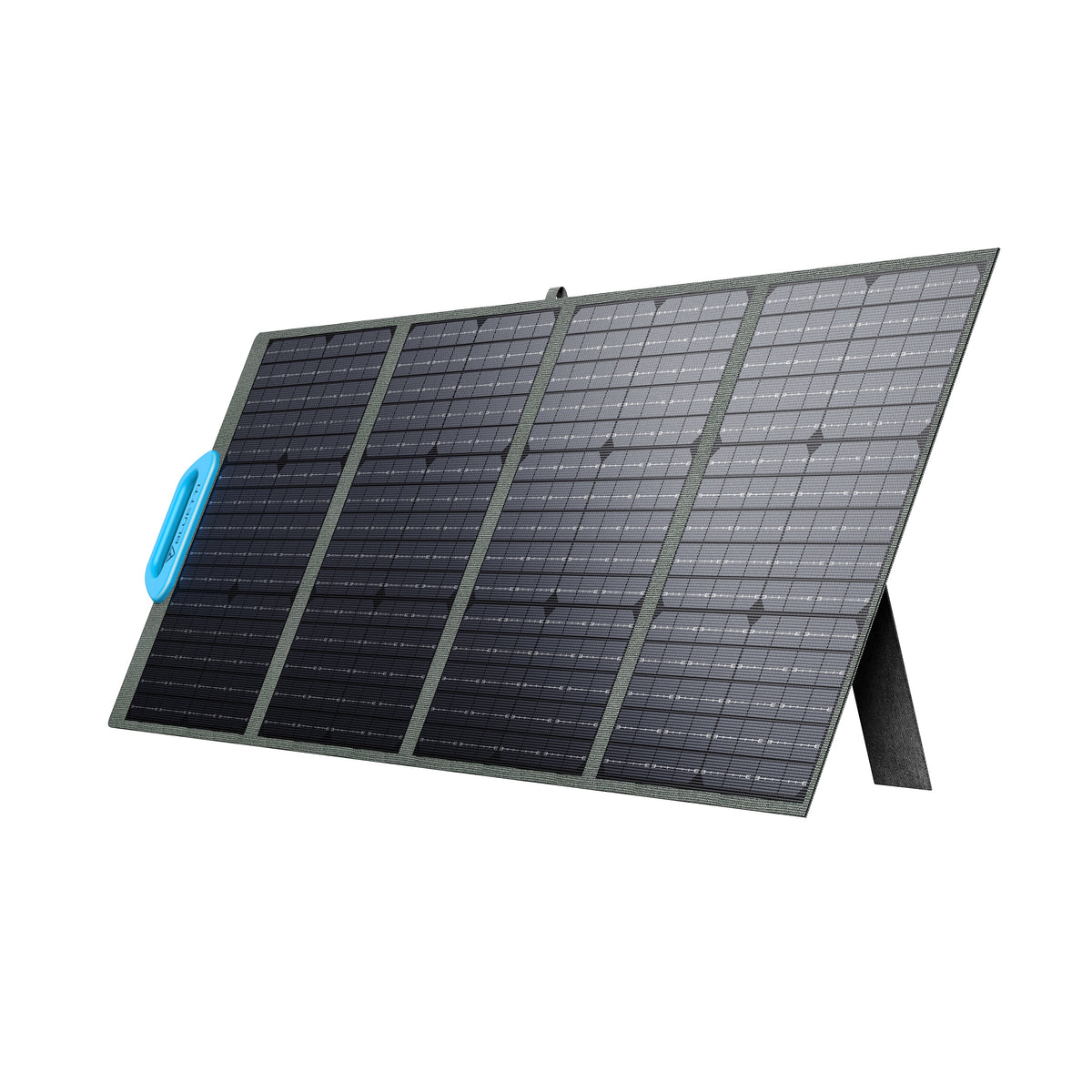

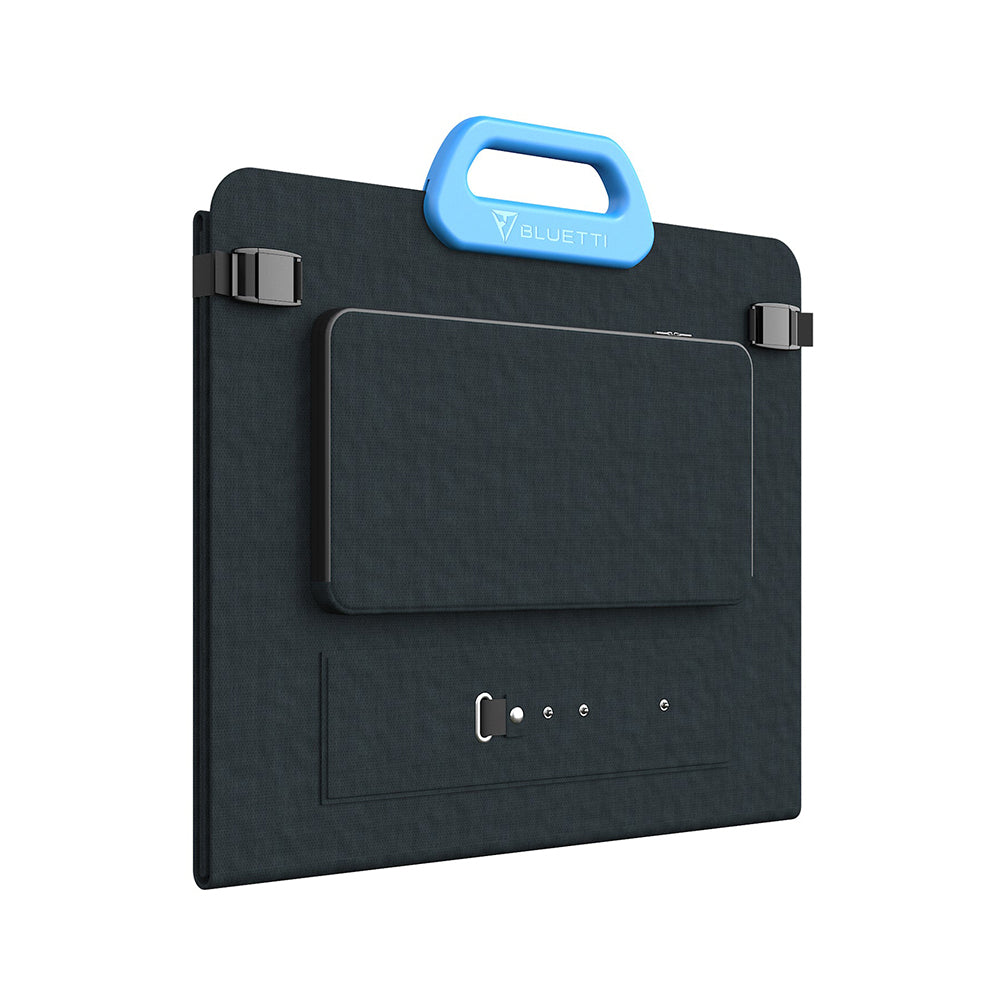

BLUETTI PV120 SOLAR PANEL | 120 W
- عاكس موجة جيبية نقية بقدرة 700 وات (ارتفاع بقوة 1400 وات)
- خلايا شمسية أحادية البلورية بكفاءة تصل إلى %23.4

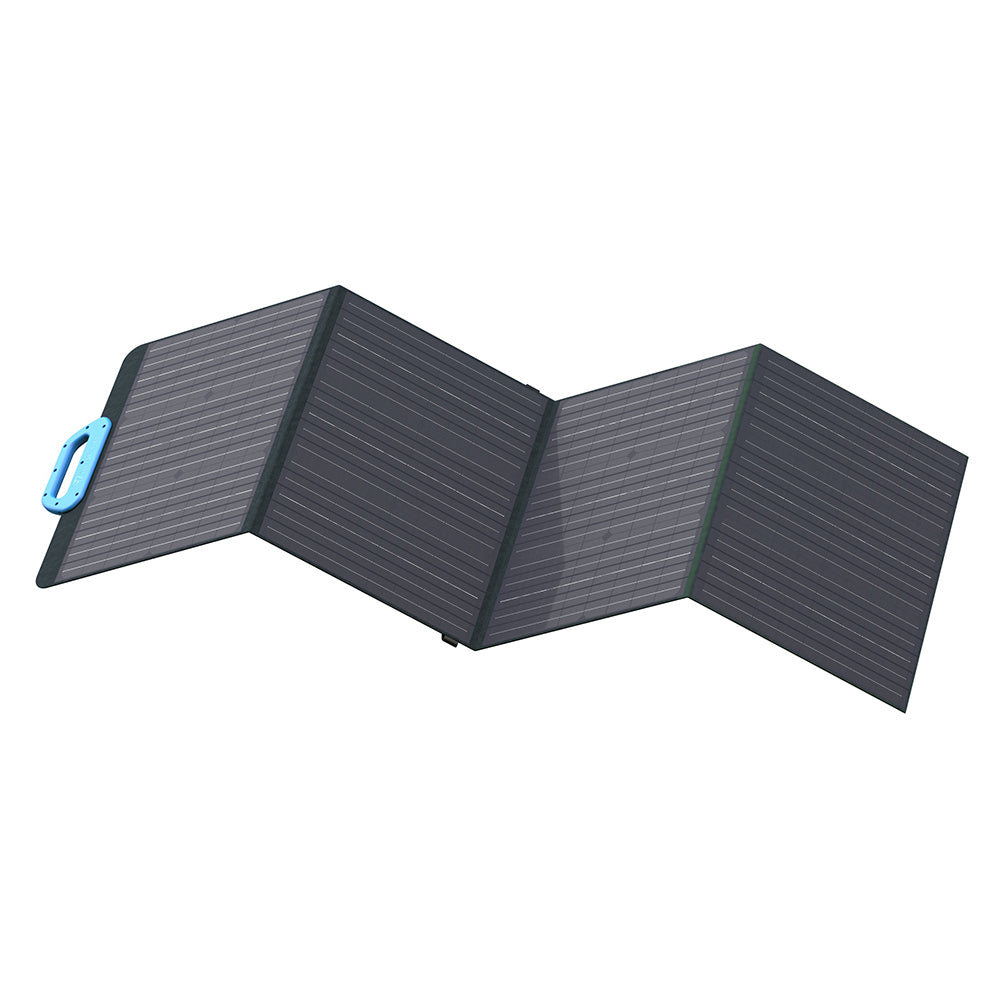

- قابلة للطي والمحمولة
- متوافق مع معظم مولدات الطاقة الشمسية مع موصلات MC4
- ضمان لمدة 12 شهرًا
Technical Specifications
Solar charging anywhere

23.4% high efficiency

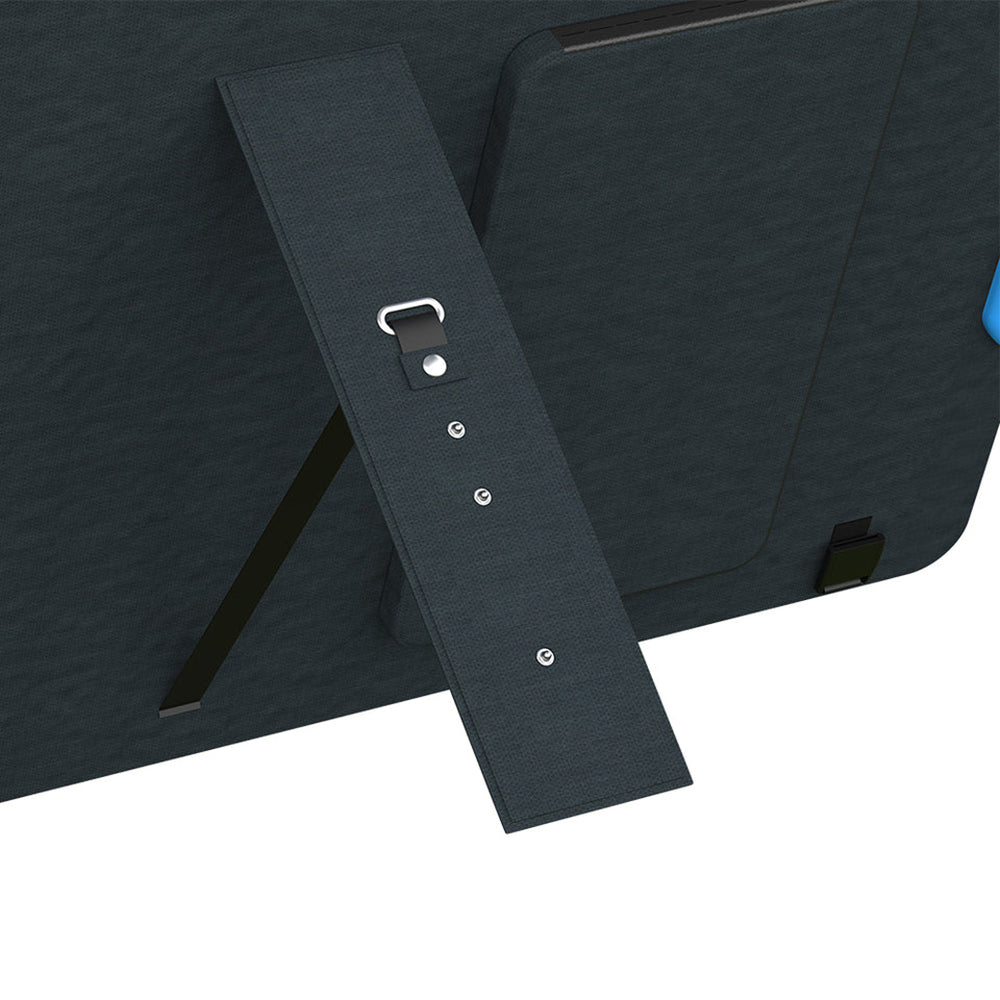

Easy setup with kickstand

Built to last

Portable in every way

Other top rated products
Specifications
Energy
general
In the box
FAQS
-
Question 1: What can this PV120 charge?
A:The PV120 can work with most power stations on the market.
1pc BLUETTI 120W Solar Panel can quickly charge BLUETTI EB55 within 5.7-6.2 hours.
1pc BLUETTI 120W Solar Panel 1pc BLUETTI 120W Solar Panel can quickly charge BLUETTI EB70 within 7.5-8 hours.

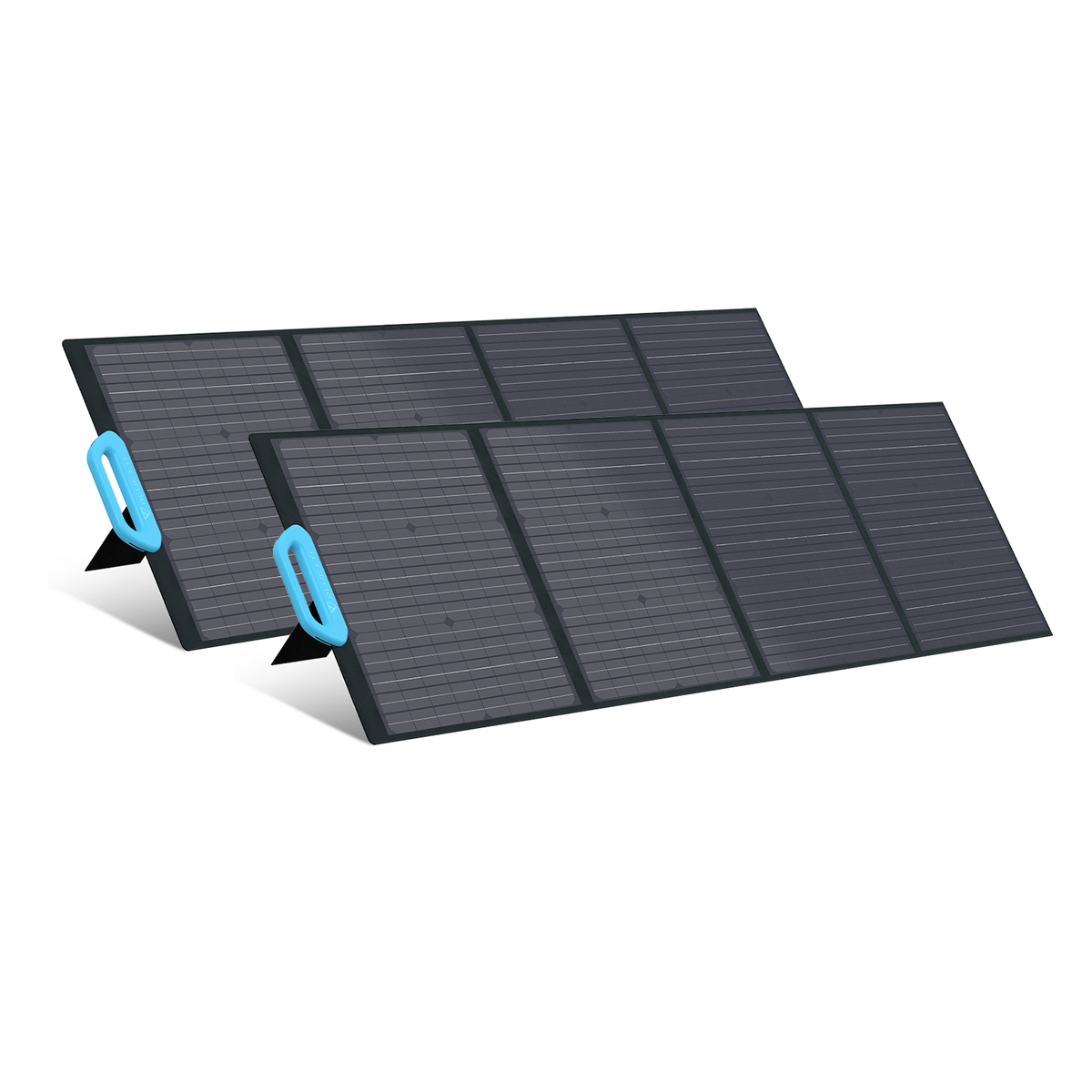

2pcs BLUETTI 120W Solar Panels 2pcs BLUETTI 120W Solar Panels can quickly charge BLUETTI EB150 within 7.8-8.3 hours by connecting them in series.

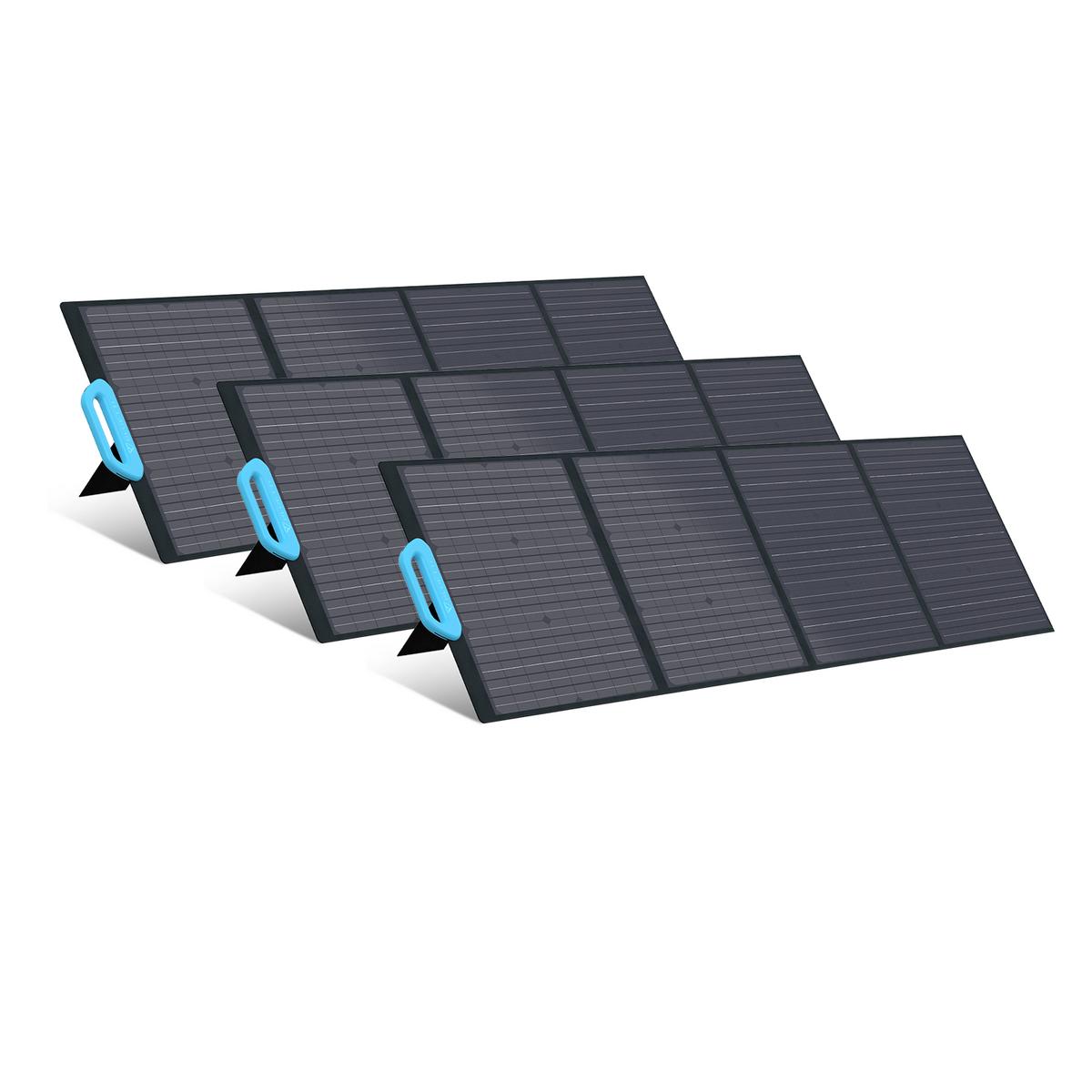

3pcs BLUETTI 120W solar panels can quickly charge your BLUETTI AC200P within 7-7.5 hours by connecting them in series.
3pcs BLUETTI 120W solar panels can quickly charge BLUETTI AC200Max within 7.2-7.7 hours by connecting them in series.
6pcs BLUETTI 120W Solar Panels can quickly charge BLUETTI AC300+*2B300 panels within 10.5-11 hours by connecting them in parallel.
Besides BLUETTI Power Station (AC200P, EB150, EB55, EB70, AC200MAX, AC300), it can also be used with Baldr/Jackery/Mobile Zero/Bacsys Rockables, AIMTOM, JACKERY if you have your own adapter (you need to buy the adapter yourself).
Friendly note: Which means if the total power of your devices exceeds 700 watts.
-
Question 2: Is it waterproof?
A:Yes, the junction box is IP65 rated, but do not expose the solar panels to rain or snow.
-
Question 3: What will affect the rate of solar conversations?
A:A. Sunlight intensity
B. Ambient temperature.
C. The angle at which you place the solar panel to the sunlight.
D. Solar charging cable length (for third party cables).
-
Question 4: How can I know how many solar panels can be used in a power plant?
A:A: Check the max. open circuit voltage and solar power input power of the power station.
B: Open circuit voltage and max. solar panel power.
C: Make sure that the total maximum voltage and power of the solar panels (in series/parallel) does not exceed the value that the power station can accommodate.
D: Make sure that the total maximum value does not exceed the numbers given in the specifications when connecting several pieces in series or parallel.
-
Question 5: What Bluetti models are compatible?
A:EB55 Power Station (537Wh/700W)
EB70 (716Wh/1000W power station)
EB150 (1500Wh/1000W) Power Station
AC200P (2000Wh/2000W Power Station)
AC200Max Power Station (2048Wh/2200W)
AC300 (3072-122888 Wh/3000 W)
B230 (Extra Battery Pack B230 (2048Wh/500W)
B300 (Extra Battery Pack B300 (3072Wh/500W))
☼To check compatibility with our future new product, please read the list included with the product, or contact us directly. ☼To check compatibility with devices not sold by our store, please contact the relevant seller.
-
Question 6: Can I mount it on the roof?
A:no.
-
Question 7: What is the difference between PV120 and SP120?
A:Under the same conditions, BLUETTI PV series solar panels produce more power from limited sunlight.* *Conclusion from the Ploieti Lab, for reference only.
-
Question 8: What is the warranty?
A:12 months warranty and lifetime support.
-
Question 9: Can I use the BLUETTI solar panel to charge the outdoor power station?
A:Yes, as long as they are
1. Contains MC4 connectors;
2. Support BLUETTI solar panel output specifications.
-

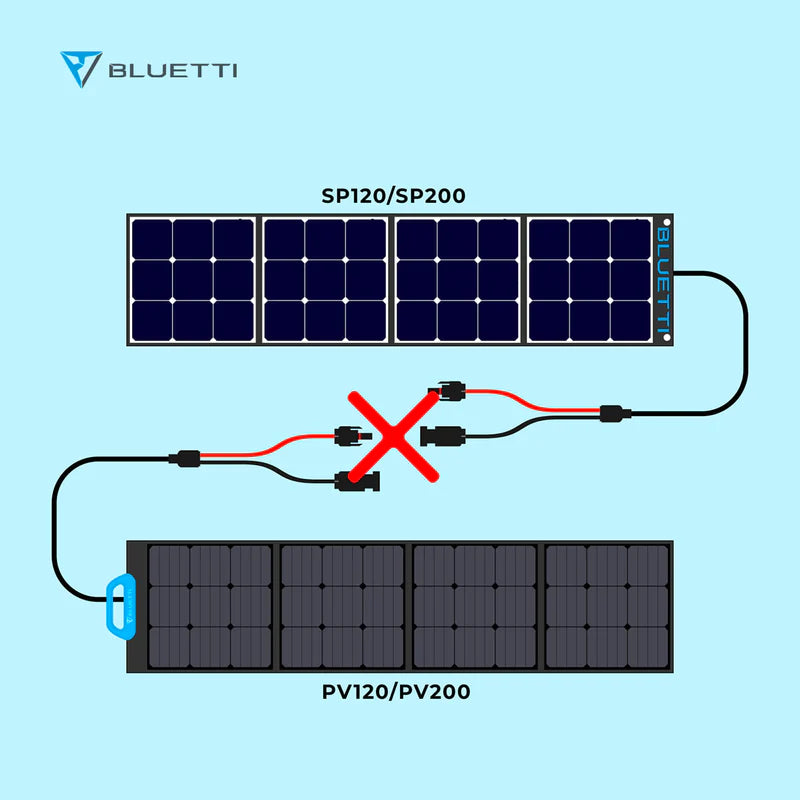

Question 10: Warning
A:Do not connect the PV120 with any other model of solar panels other than the PV120, otherwise it will be damaged.
